.NET Aspire is a framework for building cloud-ready distributed systems in .NET. It allows you to orchestrate your application along with all its dependencies, such as databases, observability tools, messaging, and more.
In version 7.0, RavenDB introduced vector search, enabling semantic search on text and image embeddings.For example, searching for "Italian food" could return results like Mozzarella & Pasta. We now focus our efforts to enhance the usability and capability of this feature.
Vector search uses embeddings (AI models' representations of data) to search for meaning.Embeddings and vectors are powerful but complex.The Embeddings Generation feature simplifies their use.
RavenDB makes it trivial to add semantic search and AI capabilities to your system by natively integrating with AI models to generate embeddings from your data. RavenDB Studio's AI Hub allows you to connect to various models by simply specifying the model and the API key.
You can read more about this feature in this article or in the RavenDB docs. This post is about the story & reasoning behind this feature.
Cloudflare has a really good post explaining how embeddings work. TLDR, it is a way for you to search for meaning. That is why Ravioli shows up for Italian food, because the model understands their association and places them near each other in vector space. I’m assuming that you have at least some understanding of vectors in this post.
The Embeddings Generation feature in RavenDB goes beyond simply generating embeddings for your data.It addresses the complexities of updating embeddings when documents change, managing communication with external models, and handling rate limits.
The elevator pitch for this feature is:
RavenDB natively integrates with AI models to generate embeddings from your data, simplifying the integration of semantic search and AI capabilities into your system.The goal is to make using the AI model transparent for the application, allowing you to easily and quickly build advanced AI-integrated features without any hassle.
While this may sound like marketing jargon, the value of this feature becomes apparent when you experience the challenges of working without it.
To illustrate this, RavenDB Studio now includes an AI Hub.
You can create a connection to any of the following models:
Basically, the only thing you need to tell RavenDB is what model you want and the API key to use. Then, it is able to connect to the model.
The initial release of RavenDB 7.0 included bge-micro-v2 as an embedded model. After using that and trying to work with external models, it became clear that the difference in ease of use meant that we had to provide a good story around using embeddings.
Some things I’m not willing to tolerate, and the current status of working with embeddings in most other databases is a travesty of complexity.
Next, we need to define an Embeddings Generation task, which looks like this:
Note that I’m not doing a walkthrough of how this works (see this article or the RavenDB docs for more details about that); I want to explain what we are doing here.
The screenshot shows how to create a task that generates embeddings from the Title field in the Articles collection.For a large text field, chunking options (including HTML stripping and markdown) allow splitting the text according to your configuration and generate multiple embeddings.RavenDB supports plain text, HTML, and markdown, covering the vast majority of text formats.You can simply point RavenDB at a field, and it will generate embeddings, or you can use a script to specify the data for embeddings generation.
Quantization
Embeddings, which are multi-dimensional vectors, can have varying numbers of dimensions depending on the model.For example, RavenDB's embedded model (bge-micro-v2) has 384 dimensions, while OpenAI's text-embedding-3-large has 3,072 dimensions.Other common values for dimensions are 768 and 1,536.
Each dimension in the vector is represented by a 32-bit float, which indicates the position in that dimension.Consequently, a vector with 1,536 dimensions occupies 6KB of memory.Storing 10 million such vectors would require over 57GB of memory.
Although storing raw embeddings can be beneficial, quantization can significantly reduce memory usage at the cost of some accuracy.RavenDB supports both binary quantization (reducing a 6KB embedding to 192 bytes) and int8 quantization (reducing 6KB to 1.5KB).By using quantization, 57GB of data can be reduced to 1.7GB, with a generally acceptable loss of accuracy.Different quantization methods can be used to balance space savings and accuracy.
Caching
Generating embeddings is expensive.For example, using text-embedding-3-small from OpenAI costs $0.02 per 1 million tokens.While that sounds inexpensive, this blog post has over a thousand tokens so far and will likely reach 2,000 by the end.One of my recent blog posts had about 4,000 tokens.This means it costs roughly 2 cents per 500 blog posts, which can get expensive quickly with a significant amount of data.
Another factor to consider is handling updates.If I update a blog post's text, a new embedding needs to be generated.However, if I only add a tag, a new embedding isn't needed. We need to be able to handle both scenarios easily and transparently.
Additionally, we need to consider how to handle user queries.As shown in the first image, sending direct user input for embedding in the model can create an excellent search experience.However, running embeddings for user queries incurs additional costs.
RavenDB's Embedding Generation feature addresses all these issues.When a document is updated, we intelligently cache the text and its associated embedding instead of blindly sending the text to the model to generate a new embedding each time..This means embeddings are readily available without worrying about updates, costs, or the complexity of interacting with the model.
Queries are also cached, so repeated queries never have to hit the model.This saves costs and allows RavenDB to answer queries faster.
Single vector store
The number of repeated values in a dataset also affects caching.Most datasets contain many repeated values.For example, a help desk system with canned responses doesn't need a separate embedding for each response.Even with caching, storing duplicate information wastes time and space. RavenDB addresses this by storing the embedding only once, no matter how many documents reference it, which saves significant space in most datasets.
What does this mean?
I mentioned earlier that this is a feature that you can only appreciate when you contrast the way you work with other solutions, so let’s talk about a concrete example. We have a product catalog, and we want to use semantic search on that.
We define the following AI task:
It uses the open-ai connection string to generate embeddings from the Products’ Name field.
Here are some of the documents in my catalog:
In the screenshots, there are all sorts of phones, and the question is how do we allow ourselves to search through that in interesting ways using vector search.
For example, I want to search for Android phones. Note that there is no mention of Android in the catalog, we are going just by the names. Here is what I do:
$query='android'
from "Products"
where vector.search(
embedding.text(Name, ai.task('products-on-openai')),$query)
I’m asking RavenDB to use the existing products-on-openai task on the Name field and the provided user input. And the results are:
I can also invoke this from code, searching for a “mac”:
var products = session.Query<Products>().VectorSearch(
x => x.WithText("Name").UsingTask("products-on-openai"),
factory => factory.ByText("Mac")).ToList();
This query will result in the following output:
That matched my expectations, and it is easy, and it totally and utterly blows my mind. We aren’t searching for values or tags or even doing full-text search. We are searching for the semantic meaning of the data.
You can even search across languages. For example, take a look at this query:
This just works!
Here is a list of the things that I didn’t have to do:
Generate the embeddings for the catalog
And ensure that they are up to date as I add, remove & update products
Handle long texts and appropriate chunking
Perform quantization to reduce storage costs
Handle issues such as rate limits, model downtime (The GPUs at OpenAI are melting as I write this), and other “fun” states
Create a vector search index
Generate an embedding vector from the user’s input
See above for all the details we skip here
Query the vector search index using the generated embedding
This allows you to focus directly on delivering solutions to your customers instead of dealing with the intricacies of AI models, embeddings, and vector search.
I asked Grok to show me what it would take to do the same thing in Python. Here is what it gave me. Compared to this script, the RavenDB solution provides:
Efficiently managing data updates, including skipping model calls for unchanged data and regenerating embeddings when necessary.
Implementing batching requests to boost throughput.
Enabling concurrent embedding generation to minimize latency.
Caching results to prevent redundant model calls.
Using a single store for embeddings to eliminate duplication.
Managing caching and batching for queries.
In short, Embeddings Generation is the sort of feature that allows you to easily integrate AI models into your application with ease.
Use it to spark joy in your users easily, quickly, and without any hassle.
I care about the performance of RavenDB. Enough that I would go to epic lengths to fix them. Here I use “epic” both in terms of the Agile meaning of multi-month journeys and the actual amount of work required. See my recent posts about RavenDB 7.1 I/O work.
There hasn’t been a single release in the past 15 years that didn’t improve the performance of RavenDB in some way. We have an entire team whose sole task is to find bottlenecks and fix them, to the point where assembly language is a high-level concept at times (yes, we design some pieces of RavenDB with CPU microcode for performance).
When we ran into this issue, I was… quite surprised, to say the least. The problem was that whenever we serialized a document in RavenDB, we would compile some LINQ expressions.
That is expensive, and utterly wasteful. That is the sort of thing that we should never do, especially since there was no actual need for it.
Here is the essence of this fix:
We ran a performance test on the before & after versions, just to know what kind of performance we left on the table.
Before (ms)
After (ms)
33,782
20
The fixed version is 1,689 times faster, if you can believe that.
So here is a fix that is both great to have and quite annoying. We focused so much effort on optimizing the server, and yet we missed something that obvious? How can that be?
Well, the answer is that this isn’t an actual benchmark. The problem is that this code is invoked per instance created instead of globally, and it is created once per thread. In any situation where the number of threads is more or less fixed (most production scenarios, where you’ll be using a thread pool, as well as in most benchmarks), you are never going to see this problem.
It is when you have threads dying and being created (such as when you handle spikes) that you’ll run into this issue. Make no mistake, it is an actual issue. When your load spikes, the thread pool will issue new threads, and they will consume a lot of CPU initially for absolutely no reason.
In short, we managed to miss this entirely (the code dates to 2017!) for a long time. It never appeared in any benchmark. The fix itself is trivial, of course, and we are unlikely to be able to show any real benefits from it in a benchmark, but that is yet another step in making RavenDB better.
One of the more interesting developments in terms of kernel API surface is the IO Ring. On Linux, it is called IO Uring and Windows has copied it shortly afterward. The idea started as a way to batch multiple IO operations at once but has evolved into a generic mechanism to make system calls more cheaply. On Linux, a large portion of the kernel features is exposed as part of the IO Uring API, while Windows exposes a far less rich API (basically, just reading and writing).
The reason this matters is that you can use IO Ring to reduce the cost of making system calls, using both batching and asynchronous programming. As such, most new database engines have jumped on that sweet nectar of better performance results.
As part of the overall re-architecture of how Voron manages writes, we have done the same. I/O for Voron is typically composed of writes to the journals and to the data file, so that makes it a really good fit, sort of.
An ironic aspect of IO Uring is that despite it being an asynchronous mechanism, it is inherently single-threaded. There are good reasons for that, of course, but that means that if you want to use the IO Ring API in a multi-threaded environment, you need to take that into account.
A common way to handle that is to use an event-driven system, where all the actual calls are generated from a single “event loop” thread or similar. This is how the Node.js API works, and how .NET itself manages IO for sockets (there is a single thread that listens to socket events by default).
The whole point of IO Ring is that you can submit multiple operations for the kernel to run in as optimal a manner as possible. Here is one such case to consider, this is the part of the code where we write the modified pages to the data file:
using (fileHandle){for(int i =0; i <pages.Length; i++){
int numberOfPages = pages[i].GetNumberOfPages();var size = numberOfPages *Constants.Storage.PageSize;var offset = pages[i].PageNumber *Constants.Storage.PageSize;var span =newSpan<byte>(pages[i].Pointer, size);RandomAccess.Write(fileHandle, span, offset);
written += numberOfPages *Constants.Storage.PageSize;}}
Actually, those aren’t threads in the normal sense. Those are kernel tasks, generated by the IO Ring at the kernel level directly. It turns out that internally, IO Ring may spawn worker threads to do the async work at the kernel level. When we had a separate IO Ring per file, each one of them had its own pool of threads to do the work.
The way it usually works is really interesting. The IO Ring will attempt to complete the operation in a synchronous manner. For example, if you are writing to a file and doing buffered writes, we can just copy the buffer to the page pool and move on, no actual I/O took place. So the IO Ring will run through that directly in a synchronous manner.
However, if your operation requires actual blocking, it will be sent to a worker queue to actually execute it in the background. This is one way that the IO Ring is able to complete many operations so much more efficiently than the alternatives.
In our scenario, we have a pretty simple setup, we want to write to the file, making fully buffered writes. At the very least, being able to push all the writes to the OS in one shot (versus many separate system calls) is going to reduce our overhead. More interesting, however, is that eventually, the OS will want to start writing to the disk, so if we write a lot of data, some of the requests will be blocked. At that point, the IO Ring will switch them to a worker thread and continue executing.
The problem we had was that when we had a separate IO Ring per data file and put a lot of load on the system, we started seeing contention between the worker threads across all the files. Basically, each ring had its own separate pool, so there was a lot of work for each pool but no sharing.
If the IO Ring is single-threaded, but many separate threads lead to wasted resources, what can we do? The answer is simple, we’ll use a single global IO Ring and manage the threading concerns directly.
Here is the setup code for that (I removed all error handling to make it clearer):
void*do_ring_work(void*arg){
int rc;if(g_cfg.low_priority_io){syscall(SYS_ioprio_set, IOPRIO_WHO_PROCESS,0,IOPRIO_PRIO_VALUE(IOPRIO_CLASS_BE,7));}pthread_setname_np(pthread_self(),"Rvn.Ring.Wrkr");
struct io_uring *ring =&g_worker.ring;
struct workitem *work = NULL;while(true){do{// wait for any writes on the eventfd // completion on the ring (associated with the eventfd)
eventfd_t v;
rc =read(g_worker.eventfd,&v,sizeof(eventfd_t));}while(rc <0&& errno == EINTR);
bool has_work =true;while(has_work){
int must_wait =0;
has_work =false;if(!work){// we may have _previous_ work to run through
work =atomic_exchange(&g_worker.head,0);}while(work){
has_work =true;
struct io_uring_sqe *sqe =io_uring_get_sqe(ring);if(sqe == NULL){
must_wait =1;
goto sumbit_and_wait;// will retry}io_uring_sqe_set_data(sqe, work);switch(work->type){case workitem_fsync:io_uring_prep_fsync(sqe, work->filefd, IORING_FSYNC_DATASYNC);break;case workitem_write:io_uring_prep_writev(sqe, work->filefd, work->op.write.iovecs,
work->op.write.iovecs_count, work->offset);break;default:break;}
work = work->next;}
sumbit_and_wait:
rc = must_wait ?io_uring_submit_and_wait(ring, must_wait):io_uring_submit(ring);
struct io_uring_cqe *cqe;
uint32_t head =0;
uint32_t i =0;io_uring_for_each_cqe(ring, head, cqe){
i++;// force another run of the inner loop, // to ensure that we call io_uring_submit again
has_work =true;
struct workitem *cur =io_uring_cqe_get_data(cqe);if(!cur){// can be null if it is:// * a notification about eventfd writecontinue;}switch(cur->type){case workitem_fsync:notify_work_completed(ring, cur);break;case workitem_write:if(/* partial write */){// queue againcontinue;}notify_work_completed(ring, cur);break;}}io_uring_cq_advance(ring, i);}}return0;}
What does this code do?
We start by checking if we want to use lower-priority I/O, this is because we don’t actually care how long those operations take. The purpose of writing the data to the disk is that it will reach it eventually. RavenDB has two types of writes:
Journal writes (durable update to the write-ahead log, required to complete a transaction).
Data flush / Data sync (background updates to the data file, currently buffered in memory, no user is waiting for that)
As such, we are fine with explicitly prioritizing the journal writes (which users are waiting for) in favor of all other operations.
What is this C code? I thought RavenDB was written in C#
RavenDB is written in C#, but for very low-level system details, we found that it is far easier to write a Platform Abstraction Layer to hide system-specific concerns from the rest of the code. That way, we can simply submit the data to write and have the abstraction layer take care of all of that for us. This also ensures that we amortize the cost of PInvoke calls across many operations by submitting a big batch to the C code at once.
After setting the IO priority, we start reading from what is effectively a thread-safe queue. We wait for eventfd() to signal that there is work to do, and then we grab the head of the queue and start running.
The idea is that we fetch items from the queue, then we write those operations to the IO Ring as fast as we can manage. The IO Ring size is limited, however. So we need to handle the case where we have more work for the IO Ring than it can accept. When that happens, we will go to the submit_and_wait label and wait for something to complete.
Note that there is some logic there to handle what is going on when the IO Ring is full. We submit all the work in the ring, wait for an operation to complete, and in the next run, we’ll continue processing from where we left off.
The rest of the code is processing the completed operations and reporting the result back to their origin. This is done using the following function, which I find absolutely hilarious:
Remember that when we submit writes to the data file, we must wait until they are all done. The async nature of IO Ring is meant to help us push the writes to the OS as soon as possible, as well as push writes to multiple separate files at once. For that reason, we use anothereventfd() to wait (as the submitter) for the IO Ring to complete the operation. I love the code above because it is actually using the IO Ring itself to do the work we need to do here, saving us an actual system call in most cases.
Here is how we submit the work to the worker thread:
This function handles the submission of a set of pages to write to a file. Note that we protect against concurrent work on the same file. That isn’t actually needed since the caller code already handles that, but an uncontended lock is cheap, and it means that I don’t need to think about concurrency or worry about changes in the caller code in the future.
We ensure that we have sufficient buffer space, and then we create a work item. A work item is a single write to the file at a given location. However, we are using vectored writes, so we’ll merge writes to the consecutive pages into a single write operation. That is the purpose of the huge for loop in the code. The pages arrive already sorted, so we just need to do a single scan & merge for this.
Pay attention to the fact that the struct workitem actually belongs to two different linked lists. We have the next pointer, which is used to send work to the worker thread, and the prev pointer, which is used to iterate over the entire set of operations we submitted on completion (we’ll cover this in a bit).
The idea is pretty simple. We first wake the worker thread by writing to its eventfd(), and then we wait on our own eventfd() for the worker to signal us that (at least some) of the work is done.
Note that we handle the submission of multiple work items by iterating over them in reverse order, using the prev pointer. Only when all the work is done can we return to our caller.
The end result of all this behavior is that we have a completely new way to deal with background I/O operations (remember, journal writes are handled differently). We can control both the volume of load we put on the system by adjusting the size of the IO Ring as well as changing its priority.
The fact that we have a single global IO Ring means that we can get much better usage out of the worker thread pool that IO Ring utilizes. We also give the OS a lot more opportunities to optimize RavenDB’s I/O.
The code in this post shows the Linux implementation, but RavenDB also supports IO Ring on Windows if you are running a recent edition.
We aren’t done yet, mind, I still have more exciting things to tell you about how RavenDB 7.1 is optimizing writes and overall performance. In the next post, we’ll discuss what I call the High Occupancy Lane vs. Critical Lane for I/O and its impact on our performance.
At the time, no other logging framework was able to sustain the kind of performance that we required. The .NET community has come a long way since then, and it has become clear that we need to revisit this decision. Performance has a much higher priority, and the API at all levels supports that (spans, avoiding allocations, etc).
The move to NLog gives users a much simpler way to integrate RavenDB logs into their monitoring & observability pipeline.
RavenDB 7.0 adds Snowflake integration to the set of ETL targets it supports.
Snowflake is a data warehouse solution, designed for analytics and data at scale. RavenDB is aimed at transactional scenarios and has a really good story around data distribution and wide geographical deployments.
You can check out the documentation to read the details about how you can use this integration to push data from RavenDB to your Snowflake database. In this post, I want to introduce one usage scenario for such integration.
RavenDB is commonly deployed on the edge, running on site in grocery stores, restaurants’ self-serve kiosks, supermarket checkout counters, etc. Such environments have to be tough and resilient to errors, network problems, mishandling, and much more.
We had to field support calls in the style of “there is ketchup all over the database”, for example.
In such environments, you must operate completely independently of the cloud. Both because of latency and performance issues and because you must keep yourself up & running even if the Internet is down. RavenDB does very well in such a scenario because of its internal architecture, the ability to run in a multi-master configuration, and its replication capabilities.
From a business perspective, that is a critical capability, to push data to the edge and be able to operate independently of any other resource. At the same time, this represents a significant challenge since you lose the ability to have an overall view of what is going on.
RavenDB’s Snowflake integration is there to bridge this gap. The idea is that you can define Snowflake ETL processes that would push the data from all the branches you have to a single shared Snowflake account. Your headquarters can then run queries, analyse the data, and in general have near real-time analytics without hobbling the branches with having to manage the data remotely.
The Grocery Store Scenario
In our grocery store, we manage the store using RavenDB as the backend. With documents such as this to record sales:
These documents are repeated many times for each store, recording the movement of inventory, tracking sales, etc. Now we want to share those details with headquarters.
There are two ways to do that. One is to use the Snowflake ETL to push the data itself to the HQ’s Snowflake account. You can see an example of that when we push the raw data to Snowflake in this article.
The other way is to make use of RavenDB’s map/reduce capabilities to do some of the work in each store and only push the summary data to Snowflake. This can be done in order to reduce the load on Snowflake if you don’t need a granular level of data for analytics.
With that in place, each branch would push details about its sales, inventory discarded, etc., to the Snowflake account. And headquarters can run their queries and get a real-time view and understanding about what is going on globally.
The big-ticket item for RavenDB 7.0 may be the new vector search and AI integration, but those aren’t the only new features this new release brings to the table.
AWS SQS ETL allows you to push data directly from RavenDB into an SQS queue. You can read the full details in our documentation, but the basic idea is that you can supply your own logic that would push data from RavenDB documents to SQS for additional processing.
For example, suppose you need to send an email to the customer when an order is marked as shipped. You write the code to actually send the email as an AWS Lambda function, like so:
deflambda_handler(event, context):for record in event['Records']:
message_body = json.loads(record['body'])
email_body ="""
Subject: Your Order Has Shipped!
Dear {customer_name},
Great news! Your order #{order_id} has shipped. Here are the details:
Track your package here: {tracking_url}
""".format(
customer_name=message_body.get('customer_name'),
order_id=message_body.get('order_id'),
tracking_url=message_body.get('tracking_url'))
send_email(
message_body.get('customer_email'),
email_body
)
sqs_client.delete_message(
QueueUrl=shippedOrdersQueue,
ReceiptHandle=record['receiptHandle'])
The next step is to get the data into the queue. This is where the new AWS SQS ETL inside of RavenDB comes into play.
You can specify a script that reacts to changes inside your database and sends a message to SQS as a result. Look at the following, on the Orders collection:
Like our previous ETL processes for queues, you can also use RavenDB in the Outbox pattern to gain transactional capabilities on top of the SQS queue. You write the messages you want to reach SQS as part of your normal RavenDB transaction, and the RavenDB SQS ETL will ensure that they reach the queue if the transaction was successfully committed.
Before discussing the actual feature, I want to show you what we have done:

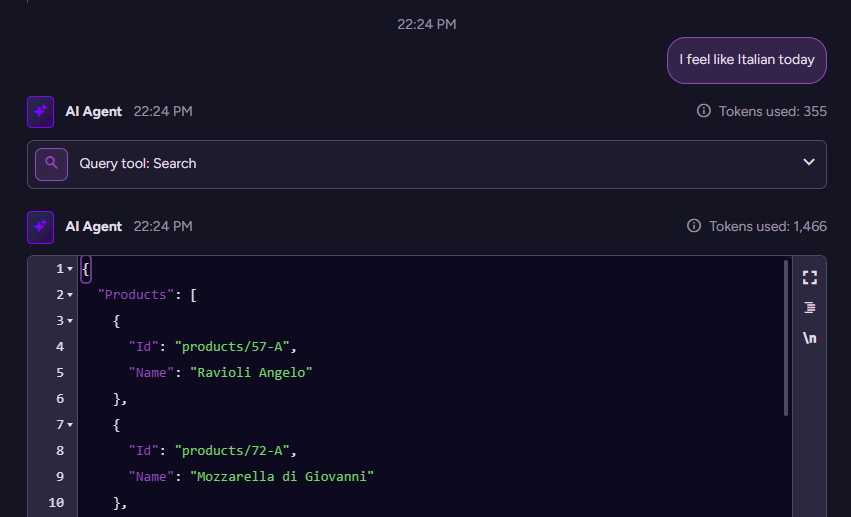

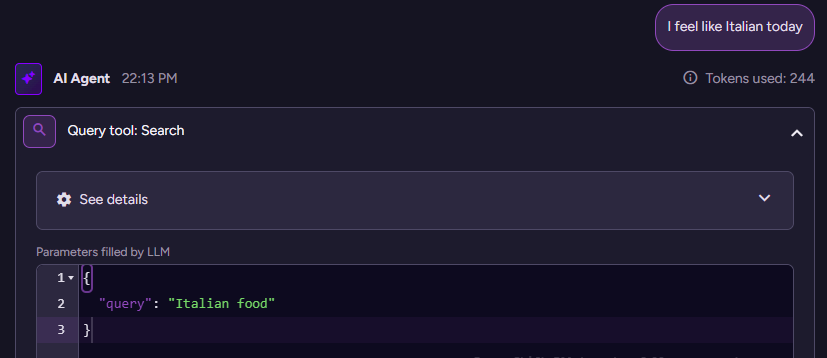

$query='I feel like italian today'
from Products
where vector.search(embedding.text(Name),$query)
Try that in the public instance using the sample database, here is what you get back!
I wrote parts of the vector search for RavenDB, and even so, Iwas pretty amazed when I realized that this query above just works. Note that there is no actual setup to be done here. You just issue a query and ask it to use the vector.search() during execution. RavenDB handles everything else.
You can read more about the vector search feature in our documentation, but the gist of it is that you can run a piece of data (text, image, or even a video) through a large language model and get a vector back. That vector allows you to query using the model’s understanding of the data.
The idea is that this moves you beyond querying with keywords or even full-text search. You are now able to search for meaning and intent. You can leverage models such as OpenAI, Ollama, Grok, Mistral, or DeepSeek to give your users deep insight into their data inside RavenDB.
RavenDB embeds a small model (bge-micro-v2) and can apply it during auto-indexes, both for generating embeddings for your data and for queries. As you can see, even with a tiny model, the results are spectacular.
Naturally, you can also use larger models, including OpenAI, Ollama, Grok, and more. Using a large model means it has a better contextual understanding of the relationships between the data and the query and can provide more accurate results.
Approximate neighbor search using the HNSW algorithm.
Exact neighbor search.
Support for vectors using float arrays, base64 encoded, and binary attachments.
RavenVector type for optimizing disk space and improving the read speed of vectors.
Using full vectors or providing quantized ones to reduce disk space.
Support for auto-quantization of vectors during indexing & queries.
Our aim with the new RavenDB 7.0 release is to make it possible for you to find meaning - to be able to leverage vectors, embeddings, large language models, and AI without fuss or trouble. I’m really proud to say that we have exceeded all my expectations.
There are a lot more exciting announcements about RavenDB & AI integration in the pipeline, and I’m really excited to share them with you in the near future.
There are actually other features that are part of RavenDB 7.0, but AI is eating the world, so we’ll cover them in a separate blog post instead of giving them a tertiary spot in this one.
+972 52-548-6969
